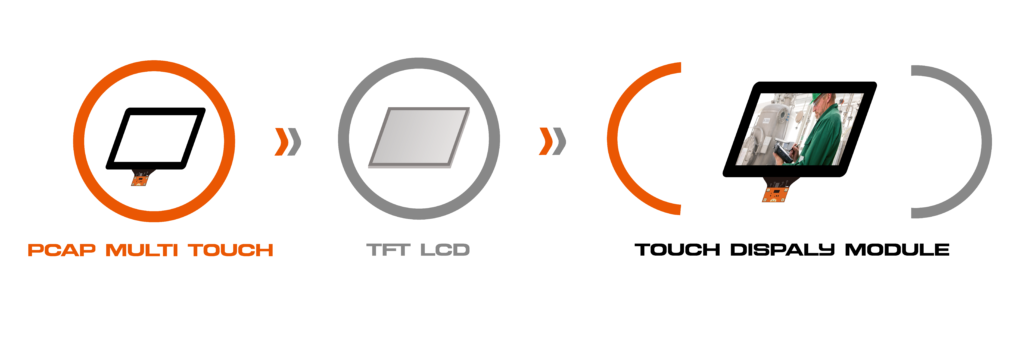

Touch Display Module

One Stop Purchase

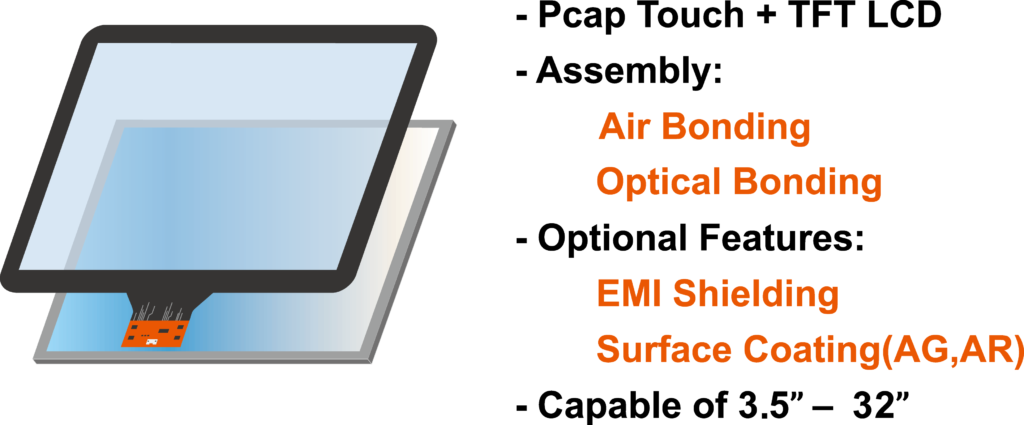

1. Get your Display and Touch Panel at once, no more trouble with lamination.

2. Display Brand: AUO, Innolux, IVO or cusotmized display

3. Lamination Types: Optical Bonding (OCR) or Air Bonding (3M VHB)

4. Available Sizes: 5″ ~ 21.5″ in standard.

5. Optional Parts: LCD Cable, Touch Cable, LCD Controller Board

#	Size	LCD Resolution	LCD Interface	LCD Brightness	Touch Interface	LED Driver	VXT Part No.
1	5	800×480	TTL	300nits	IIC	NA	VL050-8048NT-C
2	5	800×480	LVDS	300nits	USB	Integrated	VL050-8048YL-C
3	5	720×1280	MIPI	400nits	IIC	NA	VL050-72128NM-C
4	7	800×480	TTL	400nits	IIC	NA	VL070-8048NT-C
5	7	800×480	LVDS	1000nits	USB / IIC	Integrated	VL070-8048YL-C
6	7	1024×600	LVDS	800nits	USB / IIC	Integrated	VL070-10260HL-C
7	7	1024×600	LVDS	500nits	USB / IIC	Integrated	VL070-10260YL-C
8	8	1024×600	LVDS	500nits	USB / IIC	Integrated	VL080-10260YL-C
9	9	800×480	LVDS	500nits	USB / IIC	Integrated	VL090-8048YL-C
10	10.1	1024×600	LVDS	250nits	USB / IIC	Integrated	VL101-10260YL-C
11	10.1	1280×800	LVDS	300nits	USB / IIC	Integrated	VL101-12880YL-C
12	10.1	1280×800	LVDS	1000nits	USB / IIC	Integrated	VL101-12880HL-C
13	10.4	1024×768	LVDS	400nits	USB / IIC	Integrated	VL104-10276YL-C
14	10.4	1024×768	LVDS	1000nits	USB / IIC	External	VL104-10276HL-C
15	12.1	1024×768	LVDS	400nits	USB / IIC	Integrated	VL121-10276YL-C
16	15	1024×768	LVDS	500nits	USB / IIC	Integrated	VL150-10276YL-C
17	15	1024×768	LVDS	1000nits	USB / IIC	External	VL150-10276HL-C
18	15.6	1366×768	LVDS	300nits	USB / IIC	Integrated	VL156-13676YL-C
19	17″	1280×1024	LVDS	350nits	USB / UART	Integrated	VL170-128102YL-C
20	18.5″	1366×768	LVDS	300nits	USB / UART	Integrated	VL185-13676YL-C
21	19″	1280×1024	LVDS	350nits	USB / UART	Integrated	VL190-128102YL-C
22	21.5″	1920×1080	LVDS	300nits	USB / UART	External	VL215-192108YL-C
