PCAP Multi Touch – Ultra Protection
PCAP Multi Touch – Ultra Protection

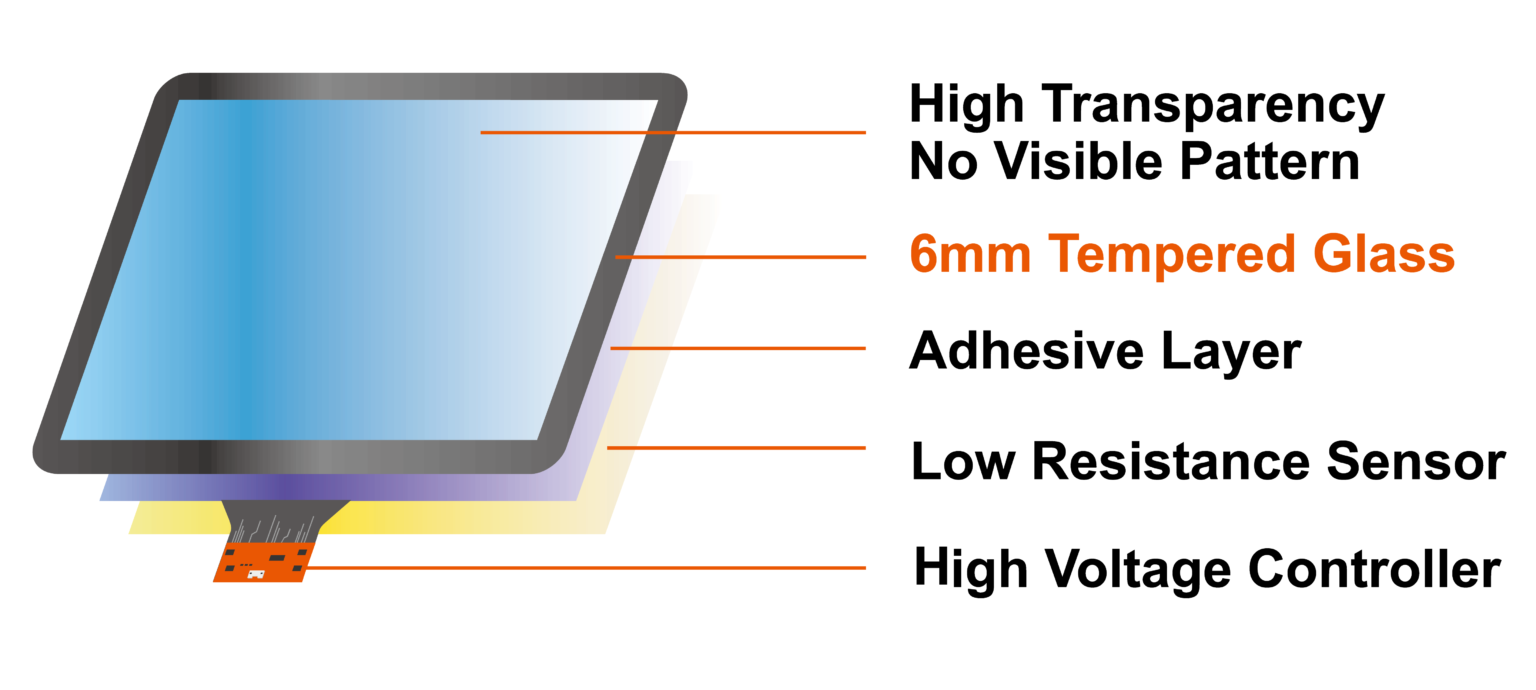

Technology and Features
1. Super High Accuracy PCAP Multi Touch
2. -30°C ~ +80°C Operating Temperature
3. 6mm Tempered Glass, Ceramic Printing
4. Up to IK09 Impact Protection (IEC62262)
5. Transparency > 88% and No Visible Pattern
6. Excellent EMS: CS 10Vrms, RS 50V/m (IEC61000-4-8)
7. Resolution Support up to 4096×4096
8. Report Rate over 100Hz
9. Response Time less than 25ms
10. Interface: USB 1.1 and UART ( UART only in 17″~ 21.5″)
